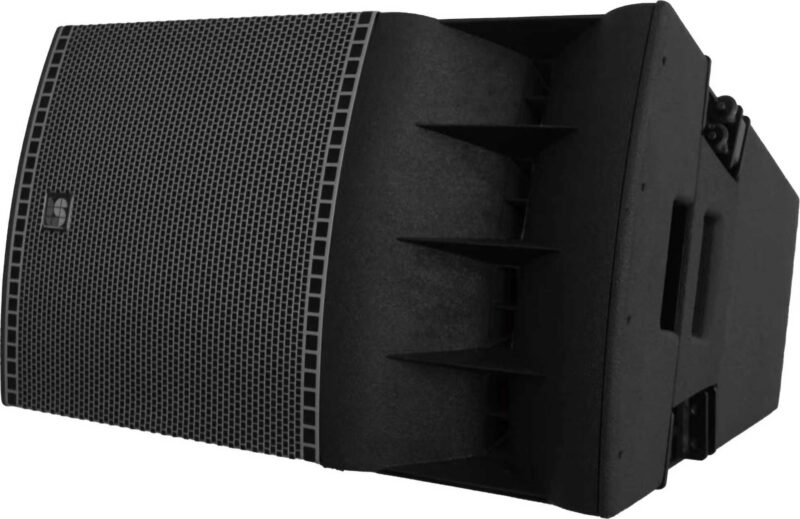

Designed and manufactured in the UK, the CC1530 is a very high output constant-curvature, two-way loudspeaker, suitable for the nightclub/entertainment and Live House market, where high SPL over up to 30m distance is required. Moving beyond the conventional black loudspeaker enclosure, Sectre features contemporary industrial design, to be seen as well as heard.
Using Italian-made transducers, CC1530 features a high performance 15″ neodymium driver with 3.5” voice coil, vented gap and demodulation ring, plus an array of four wide-bandwidth 1″ compression drivers, loaded by a large horn and waveguide assembly. This enables the CC1530 to deliver very high output levels and reliability, whilst maintaining a clear, low-distortion tonal balance.
The large HF horn provides 100° x 30° pattern control down to below the 1.2kHz crossover point. The LF driver is loaded by a phase bung, which boosts output at the upper end of the LF operating band, providing superior vocal projection compared to a direct-radiating driver.
An integral two-point flying system allows arrays of up to six Sectre loudspeakers to be built. A flying bar is available for deployment of vertical arrays, using one or two point suspension. Using a combination of CC1510 and CC1530 models, arrays can be built to match the coverage and SPL requirements of the venue. Up to three CC1530 can be deployed horizontally, using the H3plate accessory.
Construction is no-compromise, using an 18mm Baltic birch ply cabinet, with a tough, dark grey Polyurea (PU) coating. The cloth-backed, silver coloured steel grille is zinc plated and covered in an exterior-grade powder coat, providing superior corrosion resistance. For ease of installation, the logo badge is user-rotatable, without requiring tools. Cabinets can simply be rotated to deploy the HF horn left/right for vertical arrays or top/bottom for horizontal arrays.
A high-quality, hand-built passive crossover and 8 ohm nominal impedance allows two Sectre loudspeakers to be driven by one channel of the LS8Q or LS12Q four channel amplifiers. Up to eight Sectre loudspeakers can be driven by one LS series amplifier, which also comes pre-loaded with DSP EQ presets and limiter settings for Sectre arrays.
For additional low frequency output, Sectre can be partnered with the AS218 direct-radiating subwoofer.
